Ultra-compact  High reliability  High stability  High efficiency

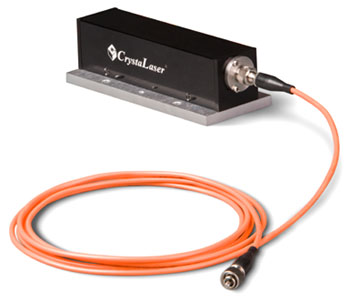

  • CrystaLaser, designs and manufactures state of the art ultra-compact diode-pumped solid-state crystal orange laser systems. Compact orange laser with fiber coupled Our orange laser features with high stability, high efficiency, high reliability, low noise and excellent laser beam quality. These orange lasers are specifically designed for OEM, scientific and industrial use.
  • New yellow orange laser products:
    • Orange laser 50 mW output at 593 nm or 594 nm
    • Orange laser with low noise output 35 mW at 593 nm or 594 nm
    • Low noise 561 nm yellow laser available
    • 250 mW DPSS yellow laser at 561 nm
  • The orange laser is easy to use, plug and play, no cooling fan, no cooling water required, no noise and no vibration during laser operation.
  • The diode-pumped CrystaLasers are based on our proprietary laser cavity technology. This new technology allows our orange crystal laser to operate in TEMoo mode with low amplitude noise and extremely low power consumption in a compact laser housing.
  • If you need special configurations of the orange laser, please contact CrystaLaser directly.
  • Please download the specifications of

    Diode-pumped Orange Laser

      Specifications
Wavelength, nm
Output power, mW
    SLM laser output
Transverse mode
Beam diameter (1/e2)
Beam divergence
Output stability, rms
Beam point stability
Polarization
Longitudinal mode
    SLM version
Spectrum linewidth
Operating temperature
Operating voltage
Warm-up time
Power consumption
Size of laser head
Size of power supply
Expected life time
593, 589, 594
50, 35, 25, 10, 5; Noise <2% (1Hz-10kHz)
35, 25, 10, 5 mW; Noise <0.5% (1Hz-10MHz)
TEMoo, M2<1.1
0.3 mm (2X beam expander, beam size 0.7 mm)
2.5 mrad (with a 2X beam expander, divergence 1 mrad)
<2% over 8 hrs; Ultra-stable option: <0.25% over 24 hrs
0.005 mrad/C
Linear; Polarization ratio > 50:1; or >100:1 option
2-4 longitudinal modes
Single longitudinal mode with >200 meters coherence length
0.15 nm, nominal;       SLM version: < 10 -5 nm
10 to 35 C
90-250 VAC or 9-20 VDC
1 minute
15 W
3 x 3 x 12 cm with a fixed 6 mm thick base plate
AC: 5x14x15 cm (2x5x6 inch)   DC: 3.5x8.5x12.7 cm
> 10,000 hours

    Diode Pumped Q-switched Orange Lasers
