Q-switched Laser, Compact DPSS Q-switched Nd:YAG Nd:YLF lasers

Diode Pumped Ultra-compact Q-switched Lasers

UV to IR Ultra-compact TEMoo High efficiency High reliability

  • CrystaLaser designs and manufactures state of the art ultra-compact diode-pumped Nd:YAG, Nd:YVO4 and Nd:YLF crystal lasers. Our lasers feature with low noise, high stability, high efficiency, high reliability and excellent laser beam quality. The specific designed compact Q-switched laser with low jitter is great for LIDAR application and the Q-switched IR, green and UV lasers are suitable for laser trimming, marking and micro machining application in semiconductor industry. These lasers are suitable for OEM, scientific and industrial use.
  • Compact Q-switched pulsed laser
  • Current available Q-switched laser products include diode-pumped solid-state Nd:YAG, Nd:YVO4 and Nd:YLF Q-switched laser systems.
  • New Product !!
  • Wavelengths of the Q-switched laser available from UV to IR (nm):
    262, 266, 349, 351, 355, 440, 447, 473, 523, 527, 532, 555, 561, 589, 593, 660, 671, 946, 1047, 1053, 1064, 1313, 1320, 1340
  • No cooling fan, no cooling water required, no noise and no vibration during laser operation, plug and play.
  • The diode-pumped Q-switched crystal lasers are based on our proprietary laser cavity technology. This new technology allows the Q-switched crystal lasers to operate in TEMoo mode with amplitude stability and extremely low power consumption in a ultra-compact housing.
  • If you need special configuration for the ultra-compact Q-switched pulsed laser, please contact CrystaLaser directly.
  • Q-switched laser FAQ.pdf

Ultra-compact Diode-pumped Q-switched Crystal Lasers

SPECIFICATIONS
Laser crystals and Wavelengths
        Nd:YAG/Nd:YVO4    Nd:YLF           Max. average output power*
UV Laser    266 nm      262, 263 nm        75mW 50mW 30mW 20mW 10mW 5mW
UV Laser    355 nm      349, 351 nm        200mW 150mW 100mW 50mW 25mW 10mW
Blue        473 nm      440, 447 nm        50mW 25mW
Green       532 nm      523, 527 nm        2W 1W 500mW 200mW 100mW 50mW
Red         671 nm      657, 660 nm        400mW 200mW 100mW 50mW
IR Laser   1064 nm     1047,1053 nm        4W 3W 2W 1W 500mW 200mW
More wavelengths available:438,440,447,473,555,561,589,593,750-1000,946,1313,1320,1342 nm
Pulse energy**                From 0.001mJ to 0.3 mJ or 1 mJ for Nd:YLF laser
Pulse width                   Typically 10 ns to 25 ns varies from lasers and rep. rate
                              special selection from 1 ns to 300 ns available
Repetition rate               1 kHz to 100 kHz internal adjustable
                              0 Hz to 200 kHz by external trigger
External trigger signal       TTL, trig at rising edge
Transverse beam mode          Single mode, TEMoo, M2<1.3, typical M2<1.1
Longitudinal mode             Multiple longitudinal modes
  NEW LASER PRODUCTS          Single longitudinal mode Q-switched lasers
                              Please contact CrystaLaser
Beam divergence               3 to 4 mrad, full angle, diffraction limited beam
Beam point stability          +/-0.005 mrad/degree C
Beam diameter (1/e2)          IR 0.5 mm, Green 0.35 mm, UV 0.25 mm
Power stability, rms          5% after warm-up, at 1k to 10kHz
Pulse to pulse variation      +/-3% IR,    +/-5% green,    +/-10% UV
Polarization ratio            100:1
Dimensions of laser head      5x18.5x3.6 cm (L,W,H) Type 2, for most of the lasers or
                              7x18.5x3.6 cm (L,W,H) for high power lasers
Dimensions of power supply    20x20x8 cm (L,W,H)
Cooling                       Laser head: conductive cooling; Power supply: fan
Warm-up time                  <3 min
Operation temperature         10 to 35 degree C
Operation voltage             90-250 VAC         12 VDC input available
Power consumption             40 W, typical

View photo of the Q-switched laser
* Average output power, Nd:YAG/YVO4 lasers, 1064 & 532 nm rep rate at >40kHz; 355 & 266 nm lasers at 15kHz; Nd:YLF lasers, 1047/1053 nm, rep. rate at 15kHz, 527 & 523 nm rep. rate at 8kHz; 349, 351 & 262 nm lasers at 4kHz.
**Maximum pulse energy at 1 kHz, 0.5mJ for 1053&1047 nm, 0.4mJ for 523&527 nm, 0.1mJ for 349&351 nm lasers, respectively.

Model No. samples                 Max. average output power
QUV-266-5,    QUV-262-5,                    5 mW
QUV-355-25,   QUV-349-25,   QUV-351-25     25 mW
QG-532-200,   QG-523-200,   QG-527-200    200 mW
QIR-1064-500, QIR-1047-500, QIR-1053-500  500 mW

Warrantee: 6 months warranty with unlimited usage against defective parts and labour after shipment for all of the Q-switched lasers.

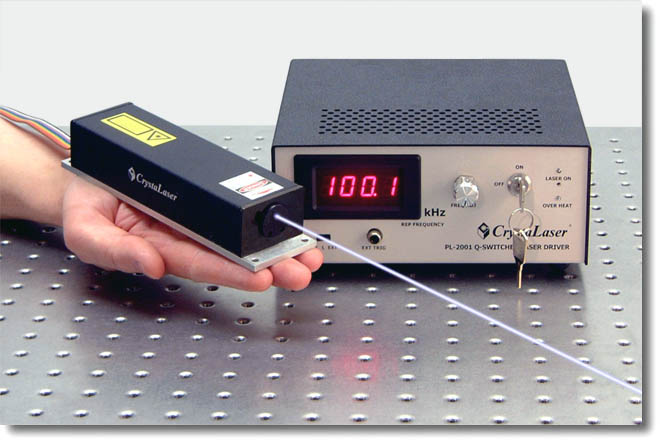

Q-switched UV ultraviolet laser

Mechanical dimensions of the Q-switched laser head is type 2

* For more information, please access the online Information Request Form and download catalog.
