Dimensions

Ultra-compact High reliability High stability High efficiency Low noise

  • Type 1 laser head
  • Type 2 laser head for Q-switched lasers or CW high power lasers
  • Type 4 laser head for compact violet and red CW lasers
  • The dimensions of optical isolators are shown in second page of the Specifications of the Optical Isolators

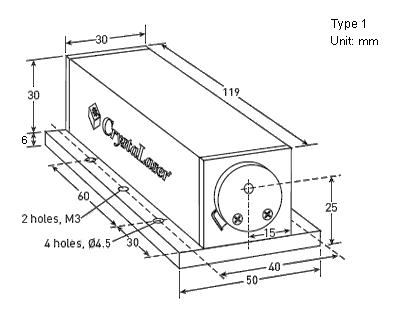

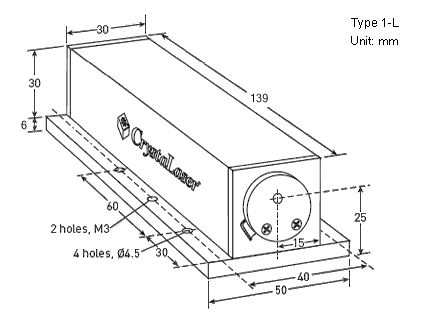

  • Type 1 and Type 1-L Laser Head, for most of the standard DPSS CW lasers

    Laser Head Physical Dimension Laser Head Dimension

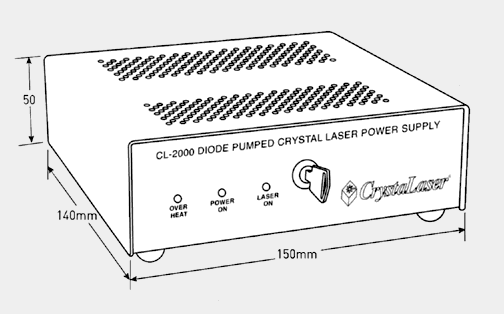

  • Standard CW Laser Power Supply, Size 50 x 140 x 150 mm3
    Optional CL-2005 power supply with display, Size 50 x 160 x 150 mm3

    laser Power Supply Dimensions

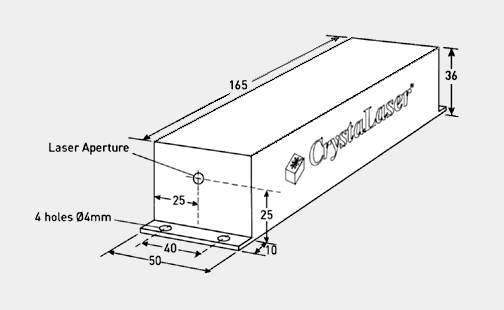

  • Type 2 Laser Head, for Q-switched lasers or CW high power lasers

    Type 2 Q-switched Laser Head Physical Dimensions

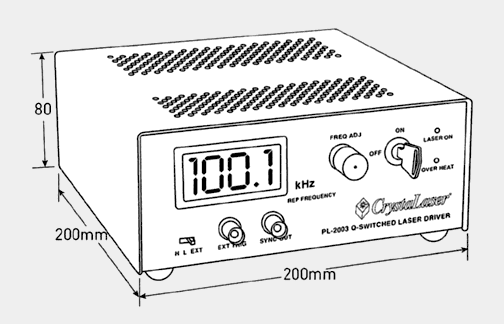

  • Q-switched Laser Power Supply: Controller and Driver

    Q-switched Laser Power Supply Dimensions

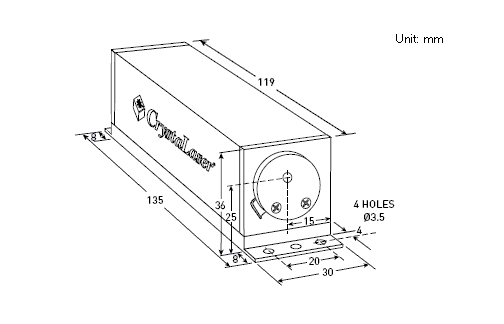

  • Type 4 Laser Head, for violet and red compact CW lasers

    Type 4 CW Laser Dimensions
  •

    * For more information, please access the online Information Request Form and download catalog.
