Ultra-compact  High reliability  High stability  High efficiency

CrystaLaser designs and manufactures state of the art ultra-compact diode-pumped laser systems with most widely available wavelength selection. Our lasers feature with ultra-compact, high stability, high reliability, high efficiency, and excellent laser beam quality. These lasers are specifically designed for OEM, scientific and industrial use.
The laser wavelengths from UV, visible to infrared with output power from 1 mW up to maximum available listed below. If you need higher output power than the listed maximum power or need a different laser wavelength, please contact CrystaLaser.


CW lasers
CW Violet Blue Green Yellow Lasers
Wavelength (nm) 375 405 390-425 440-465 473 488 515 523/527 532 542 555 561 593
Max Output(mW) 200 2000 150 2000 150 150 100 500 1000 200 200 200 50
CW Red TEMoo Mode Lasers
Wavelength (nm) 633 640 655 656 660 671 690 785 808 830 852 914 980
Max Output(mW) 100 180 80 200 200 200 50 300 400 500 500 200 1000
CW Infrared Lasers
Wavelength (nm) 780-990 946 1030 1047 1053 1064 1122 1313 1319 1338 1342 1444 1550
Max Output(mW) 100 500 200 3000 3000 3000 1000 1000 1000 1000 1500 500 1000

Q-switched lasers
Q-switched UV Blue Green Lasers
Wavelength (nm) 262 266 349 351 355 440 447 473 523 527 532 555 561
Max Aver Power(mW) 50 50 150 150 150 50 50 50 1000 1000 1000 500 500
Q-switched Red and Infrared Lasers
Wavelength (nm) 657 660 671 750-950 946 1047 1053 1064 1080 1313 1319 1342 1444
Max Aver Power(mW) 100 100 500 50 400 3000 3000 3000 500 500 400 750 200

Customized Options

  • Digital TTL on/off Control and Analog Modulation
  • Fiber Coupling. Single mode fiber coupling and multi-mode fiber coupling
  • Ultra Stable Option. Output power stability 0.5% or 0.25% over 24 hours
  • Laser Beam Expanders. Change the laser beam size and beam divergence
  • New CL-2005 Laser Power Supply. Features adjustable and displaying output power.
  • Ultra-compact Cr:LiSaF and Ti:Sapphire Lasers
  • Single Mode Seed Laser
  • Customized Laser Systems

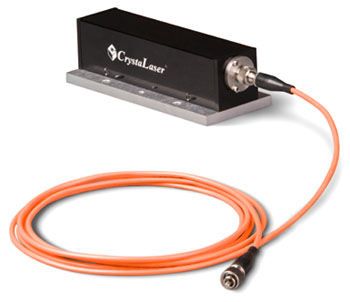

  • Contact CrystaLaser to discuss your laser system requirements Compact blue laser with fiber coupled

      Diode pumped green YAG LaserGreen laser moduleYellow-green laser and blue laser
      blue Laser moduleQ-switched UV Nd:YAG crystal laserCrystal laser green laser beam profile
    For more information, please access the online information request form and download catalog or visit main web page
